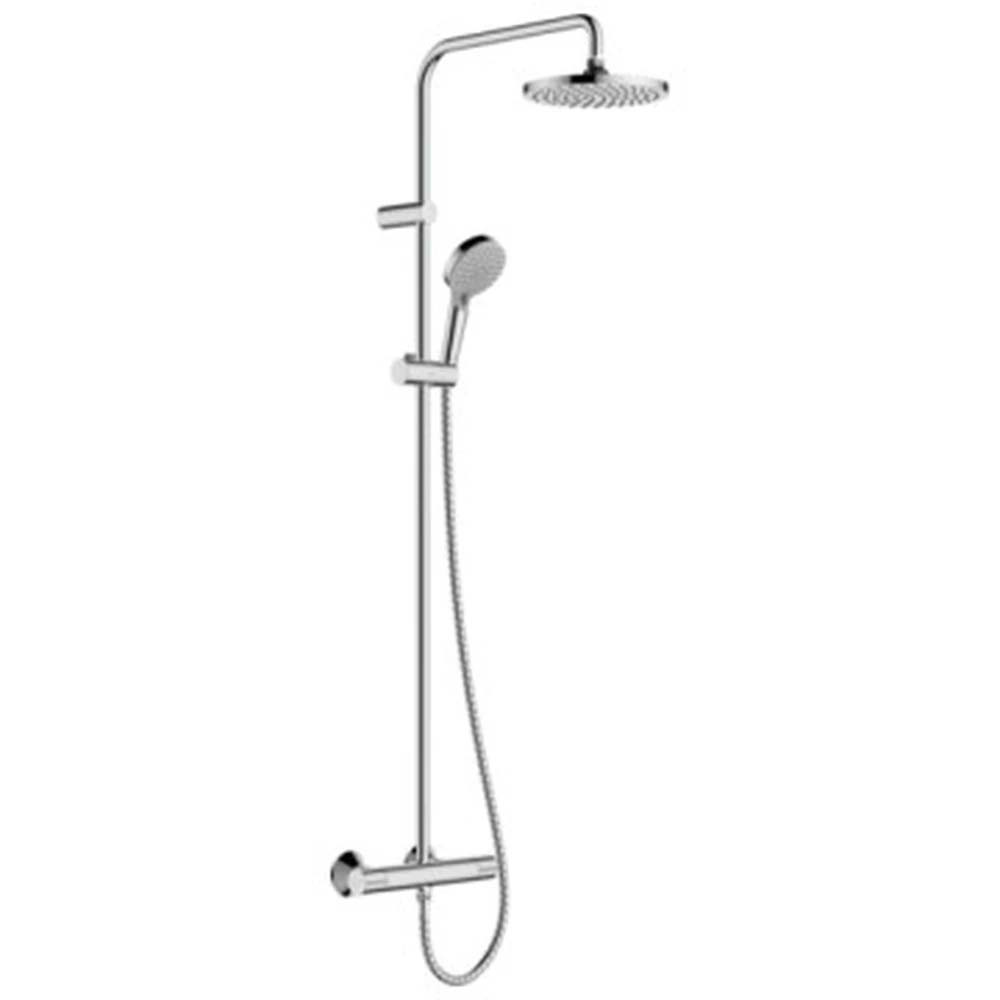

HG Vernis Blend Chr Showerpipe 200 1jet Thermostat

Article features

• consists of: overhead shower, hand shower, shower thermostat, shower hose, shower bar, slider
• overhead shower Vernis Blend 200 1jet
• shower head size overhead shower: 205 mm
• spray type overhead shower: Rain
• flow rate Rain spray (at 3 bar): 12,4 l/min
• spray type hand shower: Rain, IntenseRain
• flow rate of hand shower at 3 bar: 15,2 l/min
• maximum flow rate for Showerpipe at 3 bar: 15,2 l/min
• minimum flow pressure: 1 bar
• max. operating pressure: 10 bar
• ball-joint: overhead shower angle adjustable
• shower bar diameter: 19 mm
• height-adjustable slider with locking push-button slider
• shower arm length overhead shower: 426 mm
• thermostat Vernis
• safety stop at 40°C
• adjustable hot water limitation
• outlets controlled via turning handle
• suitable for continuous flow water heaters
• mounting type: exposed installation
• connection dimension DN15
• connection thread G ½
• centre distance 150 ± 12 mm
• intrinsically safe against backflow
• pipe length: 1124 mm
• 2 functions

Scope of supply

• Showerpipe with thermostat
• escutcheons
• S-connections
• mounting material
• assembly instruction
