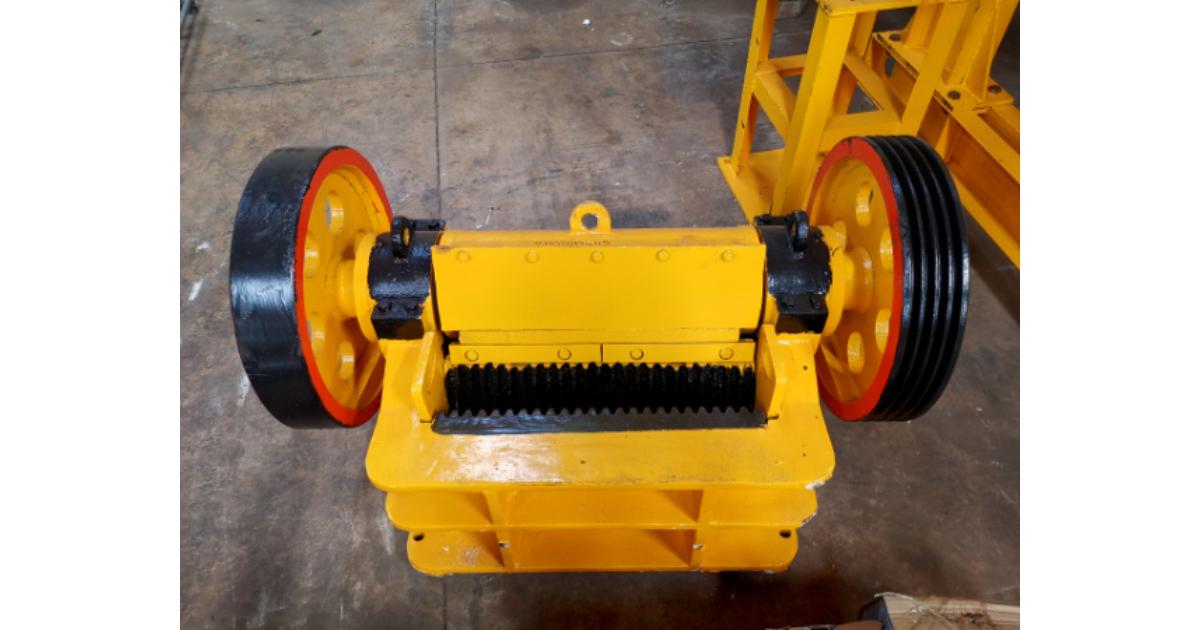

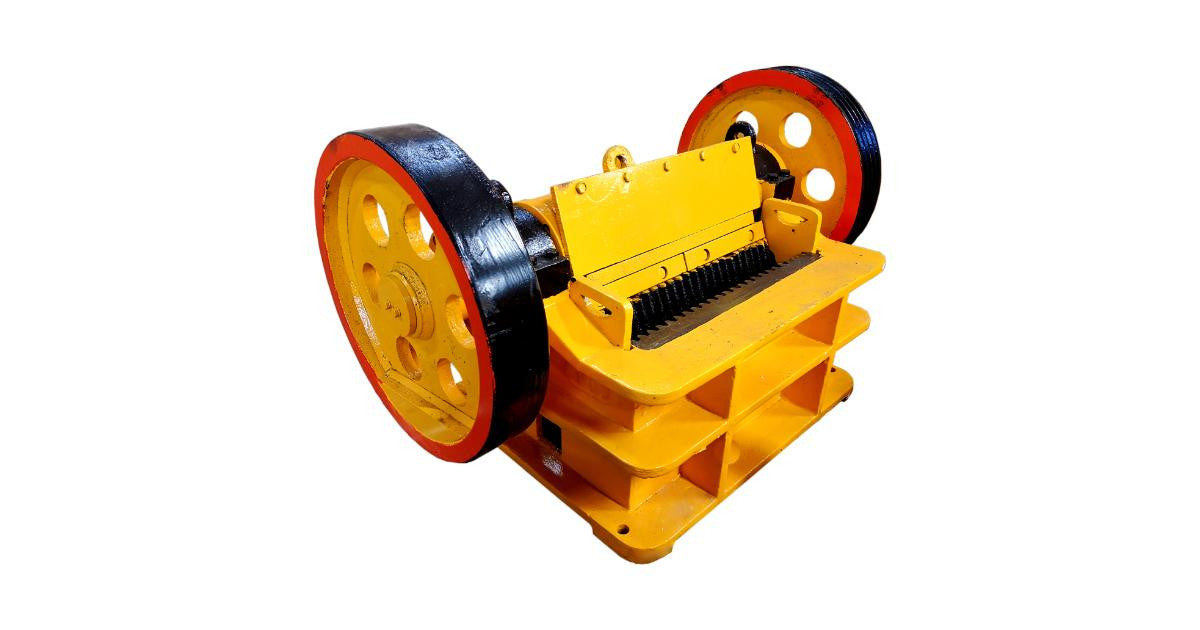

The Sino Plant Jaw Crusher 100 x 600 (380V) is engineered for efficient, reliable crushing of hard and abrasive materials in compact operations. Built for durability and continuous performance, it is ideal for small- to medium-scale quarrying, mining, aggregate production, and construction applications where dependable primary crushing is required.
*Excludes frame and belts, and should be fitted to a concrete base.
Eccentric Shaft Speed: 330 r per min Capacity: 3 t per hour to 10 t per hour Crusher Weight: 820 kg Motor Weight: 102 kg Standard jaw plate material Mn13 Wrist plate HT200 to protect the jaw plate
MOTOR Motor Power: 7.5 kW
DIMENSIONS Maximum Feeding Granularity: 80 mm Feed Opening Width: 100 mm Feed Opening Length: 600 mm Discharge Opening Range: 7 mm to 20 mm
Shipping Estimate: 3-7 Weeks (Harare, Bulawayo, Victoria Falls, Mutare, Gweru, Kwekwe, Kadoma, Chegutu, Masvingo, Beitbridge). Collections at First Step Premium Building, 1 Dungarvan West Road, Borrowdale, Harare, Zimbabwe.
