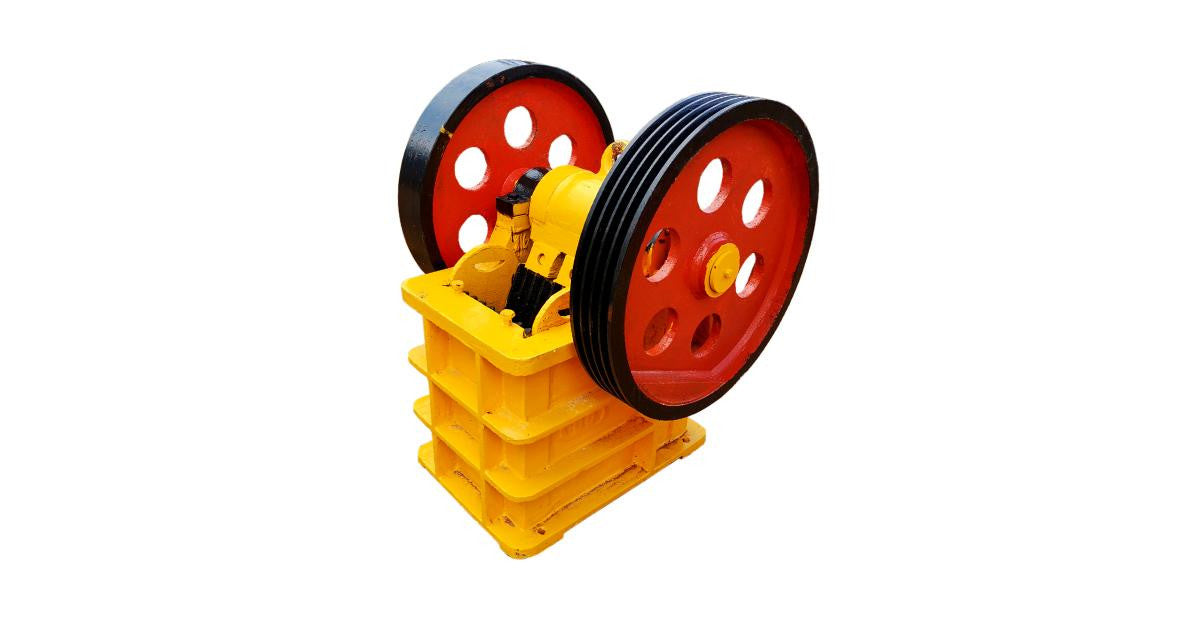

Jaw Crusher 150 x 250 380V

The Sino Plant Jaw Crusher 150 x 250 (380V) is engineered for reliable, high-efficiency crushing of hard and abrasive materials. Built for durability and consistent performance, it is ideal for small to medium quarrying, mining, aggregate production, and construction applications where dependable primary crushing is required.

*Excludes Frame and Belts
*Installation Requirement: Must Be Fitted to a Concrete Base

Maximum Feeding Granularity: 125 mm
Feed Opening Width x Length: 150 x 250 mm
Discharge Opening Range: 15 mm to 40 mm
Eccentric Shaft Speed: 290 r per min
Capacity: 1 t per hour to 3 t per hour
Motor Power: 5.5 kW
Crusher Weight: 470 kg
Motor Weight: 54 kg
Standard Jaw Plate Material: Mn13
Wrist Plate Material: HT200
Wrist Plate Function: Protects the Jaw Plate

DIMENSIONS
Feed Opening Width: 150 mm
Feed Opening Length: 250 mm

Shipping Estimate: 3-7 Weeks (Harare, Bulawayo, Victoria Falls, Mutare, Gweru, Kwekwe, Kadoma, Chegutu, Masvingo, Beitbridge). Collections at First Step Premium Building, 1 Dungarvan West Road, Borrowdale, Harare, Zimbabwe.
