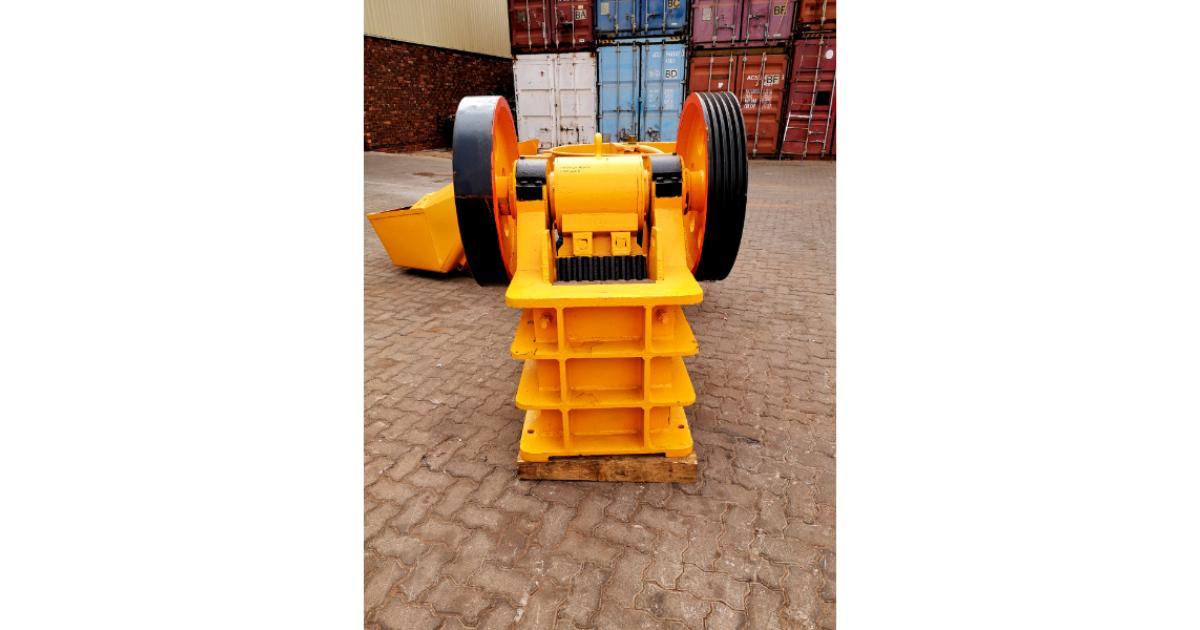

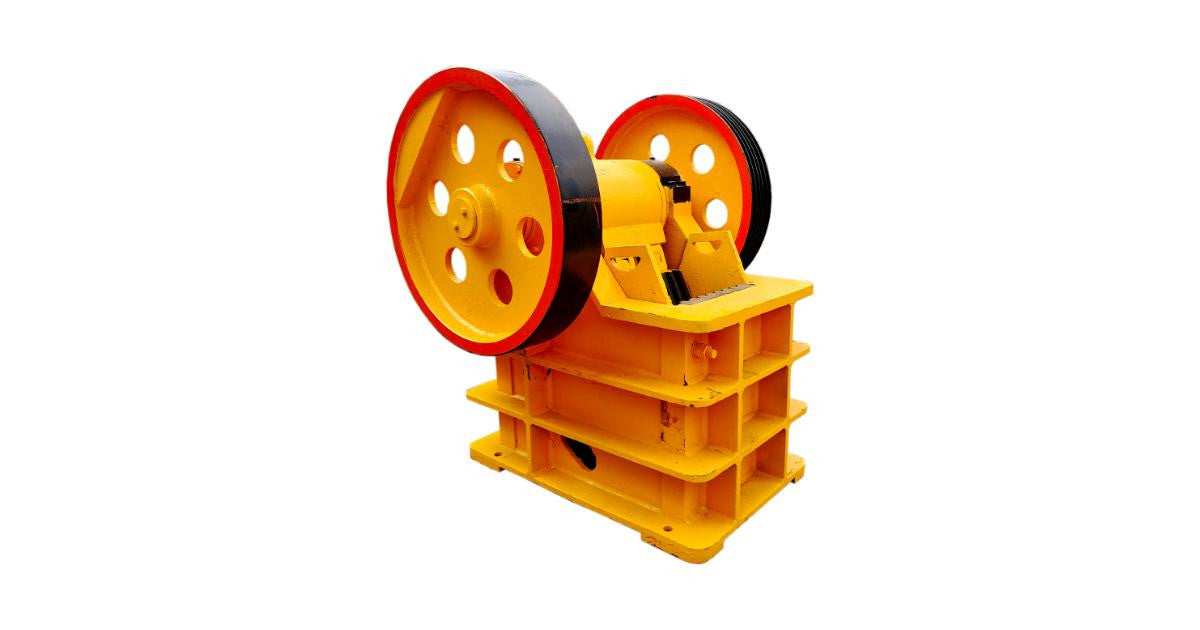

The Sino Plant Jaw Crusher 250 x 400 (380V) is engineered for reliable, high-efficiency crushing of hard and abrasive materials. Built for durability and continuous performance, it is ideal for small- to medium-scale quarrying, mining, aggregate production, and construction applications where dependable primary crushing is required.
*Excludes frame and belts, and should be fitted to a concrete base.

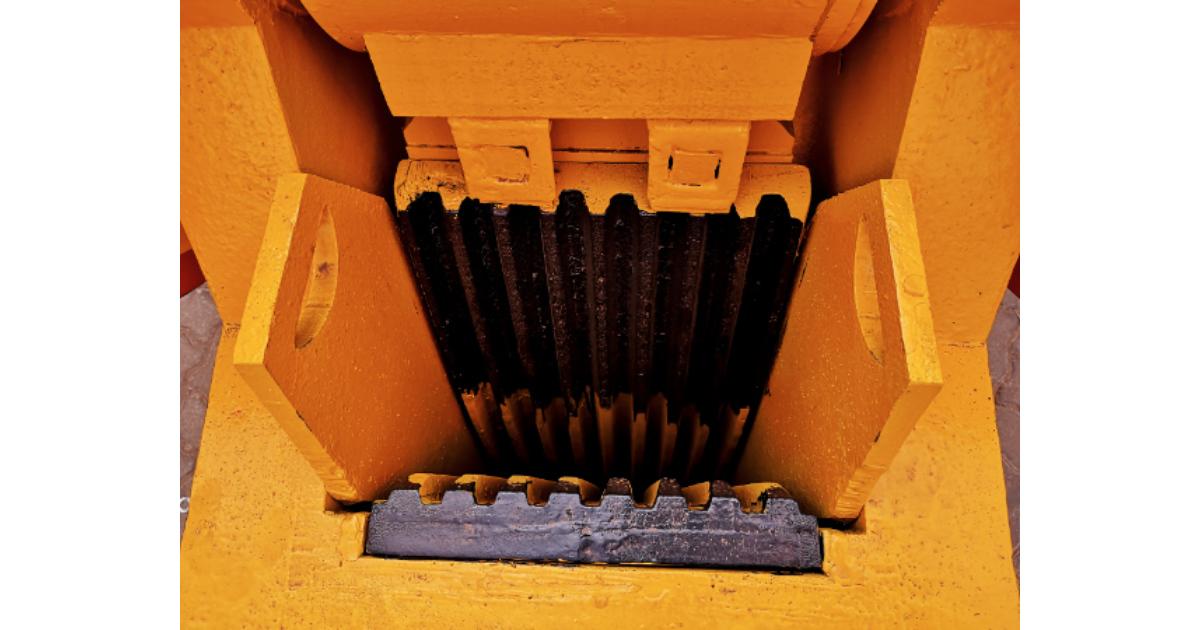

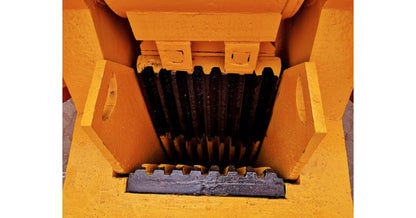

Eccentric Shaft Speed: 300 r per min Capacity: 5 t per hour to 20 t per hour Crusher Weight: 1825 kg Motor Weight: 190 kg Standard Jaw Plate Material: Mn13 Wrist Plate Material: HT200 Wrist Plate Function: Protects the Jaw Plate
MOTOR Motor Power: 15 kW
DIMENSIONS Maximum Feeding Granularity: 210 mm Feed Opening Width: 250 mm Feed Opening Length: 400 mm Discharge Opening Range: 20 mm to 40 mm
Shipping Estimate: 3-7 Weeks (Harare, Bulawayo, Victoria Falls, Mutare, Gweru, Kwekwe, Kadoma, Chegutu, Masvingo, Beitbridge). Collections at First Step Premium Building, 1 Dungarvan West Road, Borrowdale, Harare, Zimbabwe.
