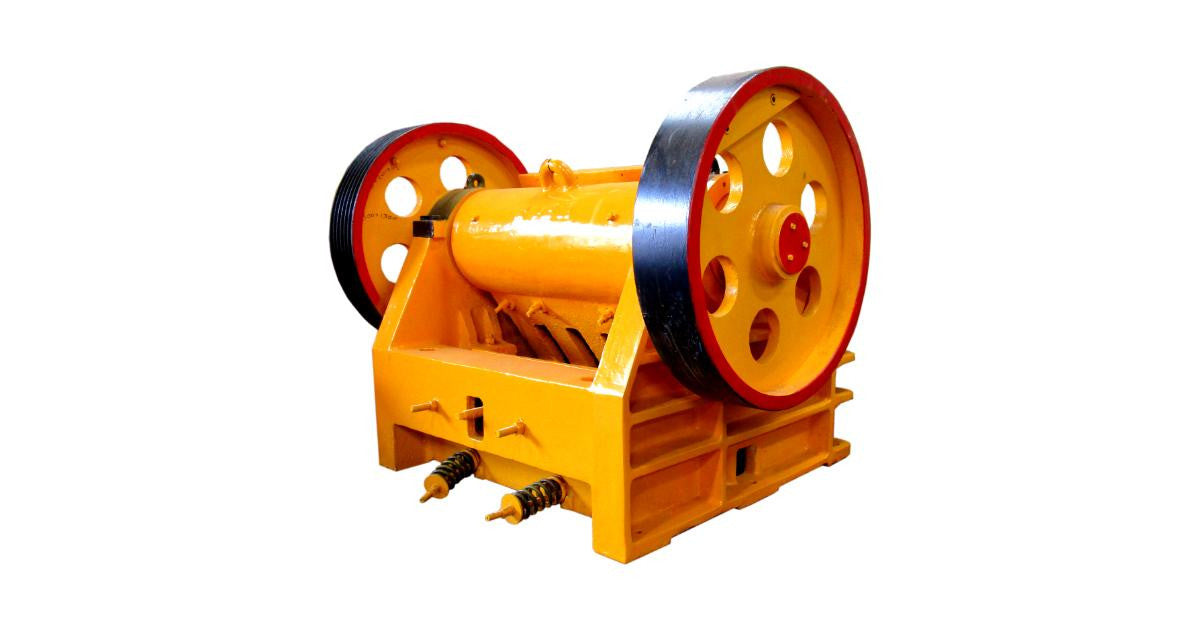

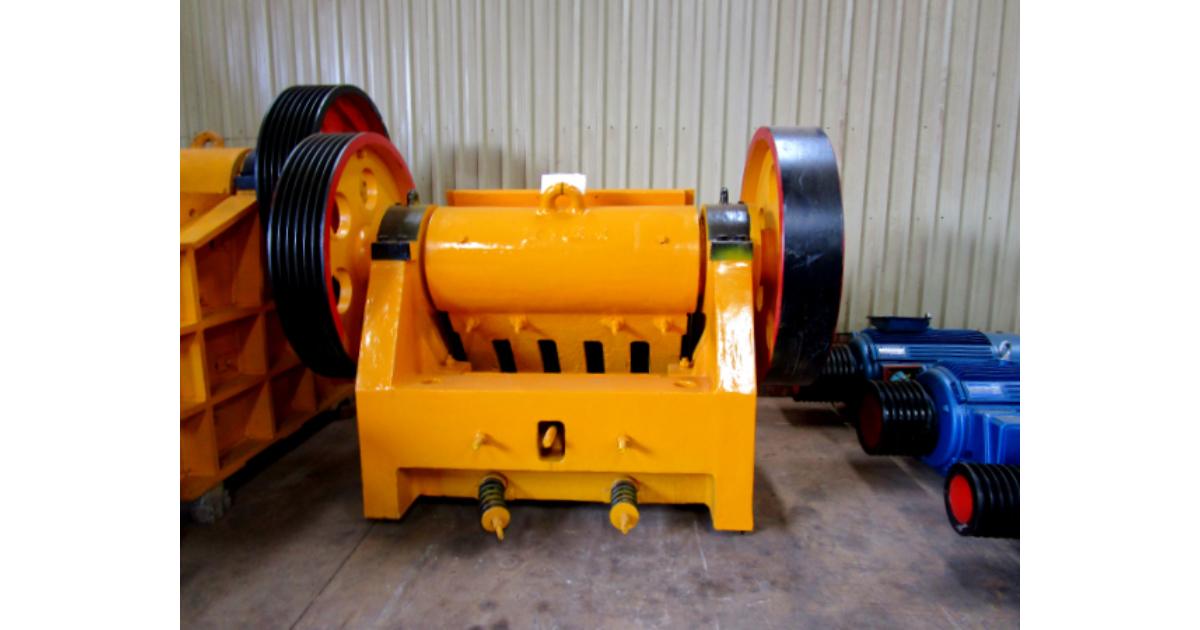

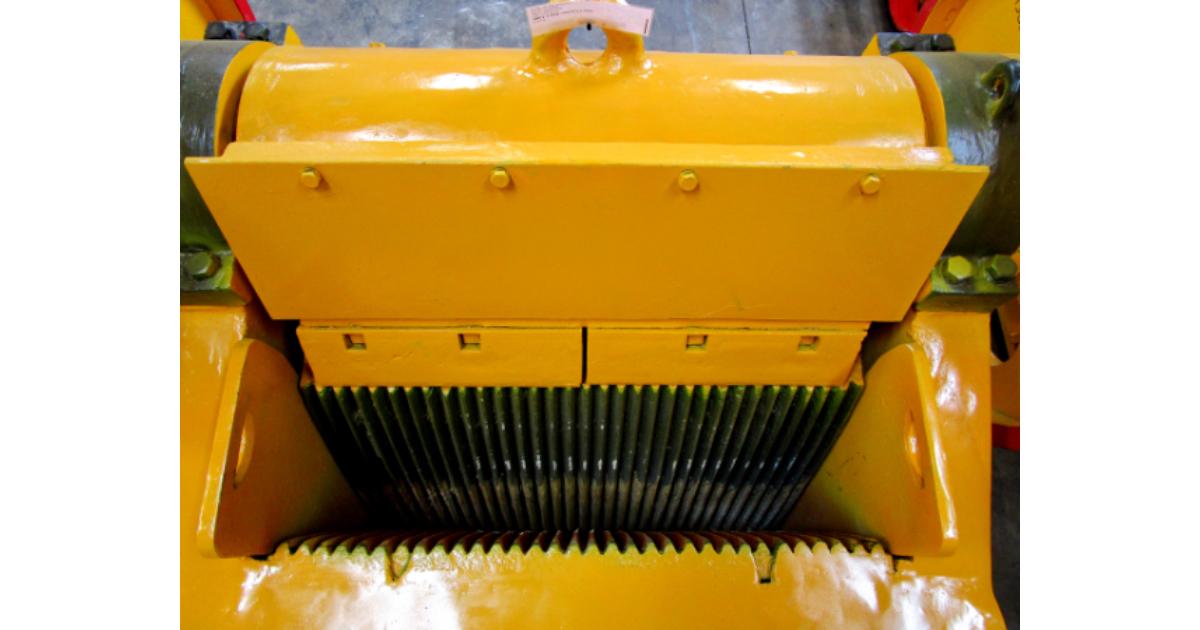

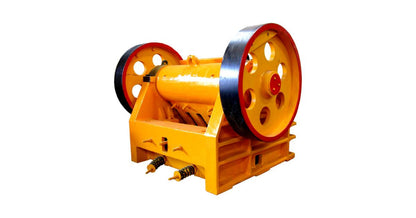

Jaw Crusher 300 x 1300 380V

The Sino Plant Jaw Crusher 300 x 1300 380V delivers robust high efficiency crushing performance for quarrying, mining and aggregate production applications. Built for durability, reliability and continuous heavy duty operation.

Eccentric Shaft Speed: 300 r per min
Capacity: 15 t per hour to 90 t per hour
Crusher Weight: 10665 kg
Motor Weight: 850 kg
Standard Jaw Plate Material: Mn13
Wrist Plate Material: HT200
Wrist Plate Function: Protects the Jaw Plate

MOTOR
Motor Power: 75 kW

DIMENSIONS
Maximum Feeding Granularity: 250 mm
Feed Opening Width: 300 mm
Feed Opening Length: 1300 mm
Discharge Opening Range: 30 mm to 70 mm

Shipping Estimate: 3-7 Weeks Days (Harare, Bulawayo, Victoria Falls, Mutare, Gweru, Kwekwe, Kadoma, Chegutu, Masvingo, Beitbridge). Collections at First Step Premium Building, 1 Dungarvan West Road, Borrowdale, Harare, Zimbabwe.
