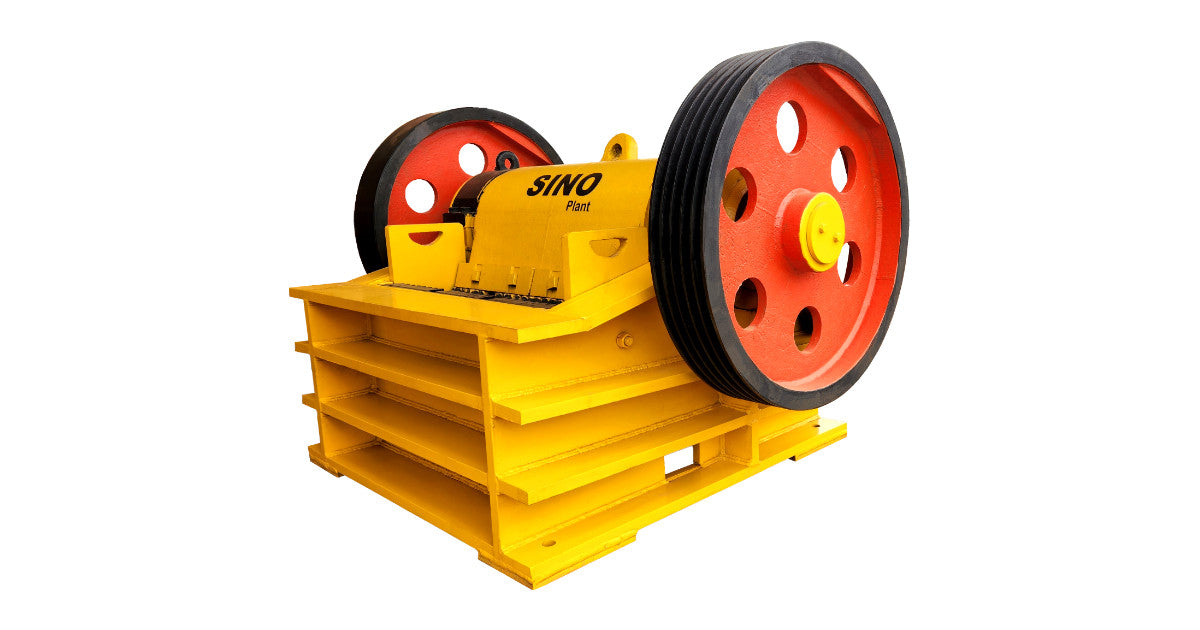

Jaw Crusher PE 150 x 750 380V

The Sino Plant Jaw Crusher PE 150 x 750 (380V) is engineered for efficient, reliable crushing of hard and abrasive materials in demanding operations. Built for durability and continuous performance, it is ideal for primary crushing in small- to medium-scale quarrying, mining, aggregate production, and construction applications where dependable material reduction is essential.

*Excludes frame and belts, and should be fitted to a concrete base.

Eccentric Shaft Speed: 300 r per min
Capacity: 5 t per hour to 20 t per hour
Crusher Weight: 1825 kg
Motor Weight: 190 kg
Standard Jaw Plate Material: Mn13
Wrist Plate Material: HT200
Wrist Plate Function: Protects the Jaw Plate

MOTOR
Motor Power: 15 kW

DIMENSION
Maximum Feeding Granularity: 210 mm
Feed Opening Width: 250 mm
Feed Opening Length: 400 mm
Discharge Opening Range: 20 mm to 40 m

Shipping Estimate: 3-7 Weeks (Harare, Bulawayo, Victoria Falls, Mutare, Gweru, Kwekwe, Kadoma, Chegutu, Masvingo, Beitbridge). Collections at First Step Premium Building, 1 Dungarvan West Road, Borrowdale, Harare, Zimbabwe.
