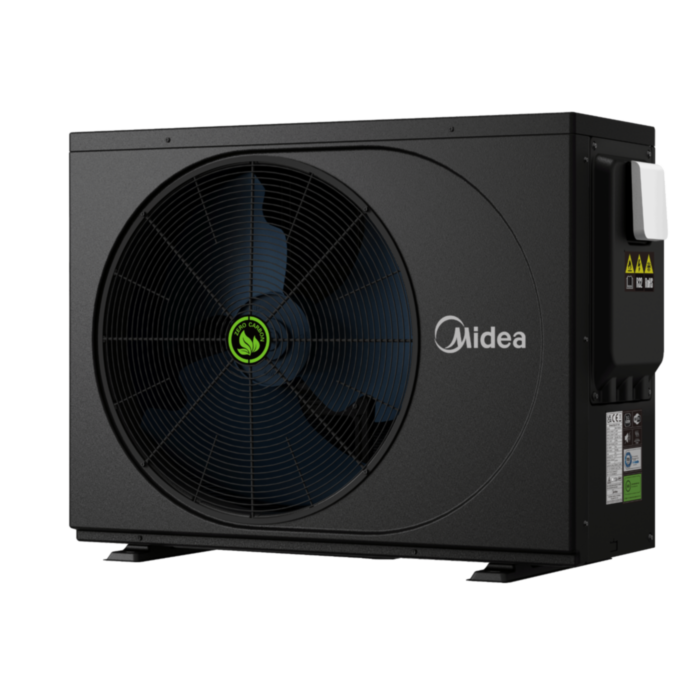

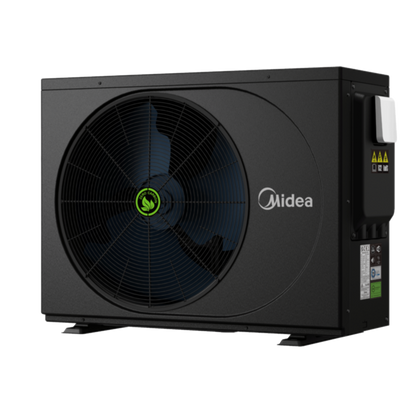

Midea 16KW Pool Heat Pump - MSC-160D2

Midea 16KW Pool Heat Pump - MSC-160D2

The ESG-Inv M Series is designed to support a more sustainable and energy-efficient future. Featuring advanced full inverter technology, the unit delivers reliable pool heating comfort while reducing energy consumption and environmental impact

Technical Specifications
Midea Model  MSC-160D 2N8-A
Power supply  220~240V 1N 50Hz

Summer Conditions
Heating capacity (Air 27°C/Water 26°C/Humid. 80%) kW 3.8-16.0
COP  12.4-5.1
Boost Mode(Max) capacity(Air 27°C/Water 26°C/Humid. 80%) kW  3.8-18.7
COP   12.4-6.0

Winter Conditions
Heating capacity (Air 15°C/Water 26°C/Humid. 71%) kW  3.5-12.8
COP    7.6-4.5
Boost Mode(Max) Heating capacity kW 3.5-15.0
COP   7.6-3.8
EER   3.8-3.0
Max current A  18
Refrigerant type  R32
Sound pressure level (1m) dB(A)  50
Silent mode sound pressure level (1m)  dB(A)    41
Water flow m3/h  6.9
Water pressure drop  kPa    23
Water connection mm 50
Net weight/Gross weight kg  53/59
Unit Net size (L/W/H) mm 988x365x712
Unit Carton size (L/W/H) mm 1075x480x770
