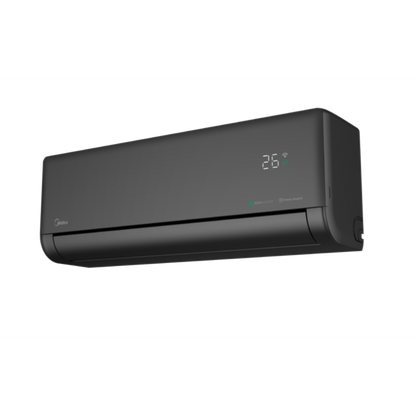

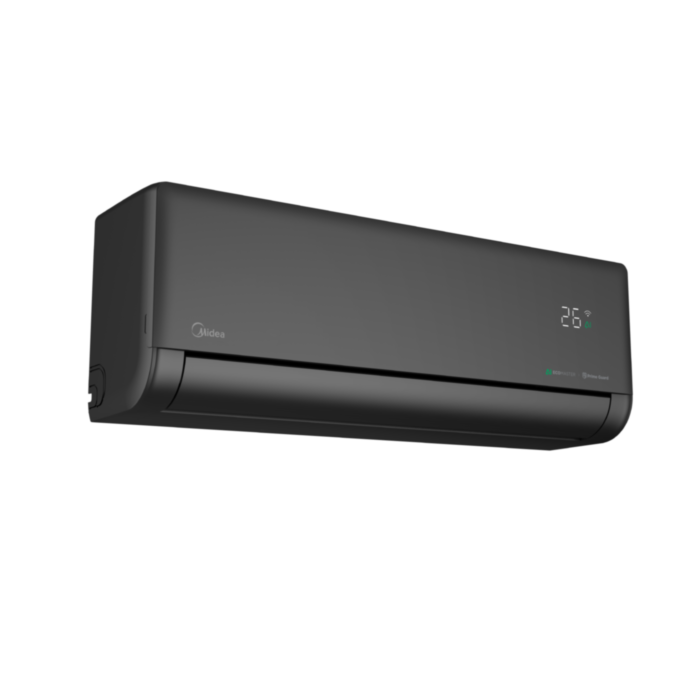

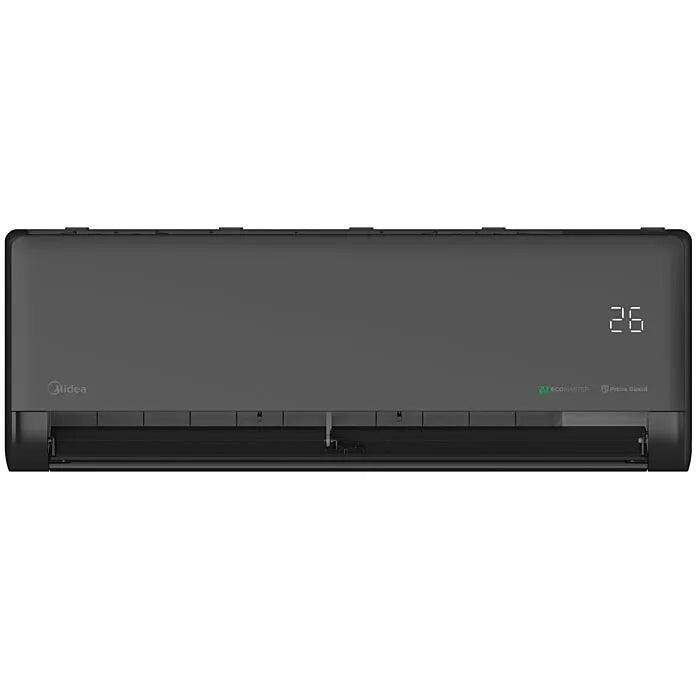

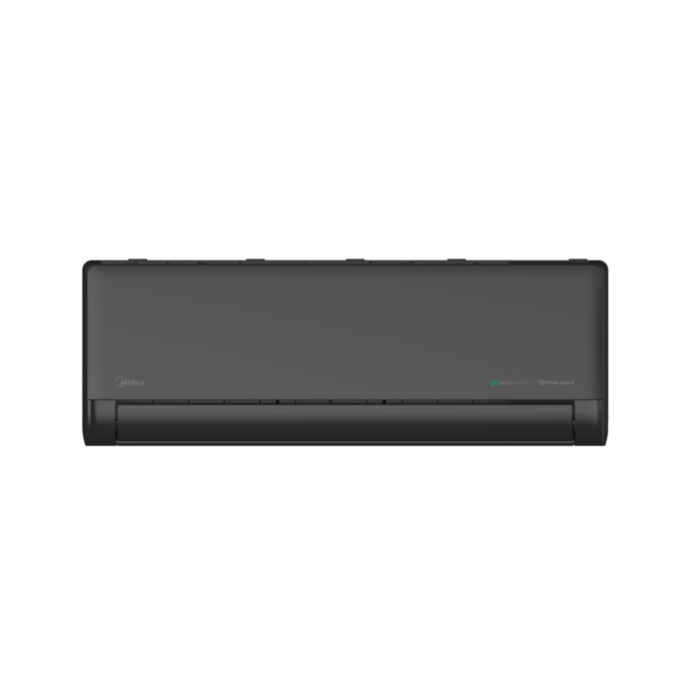

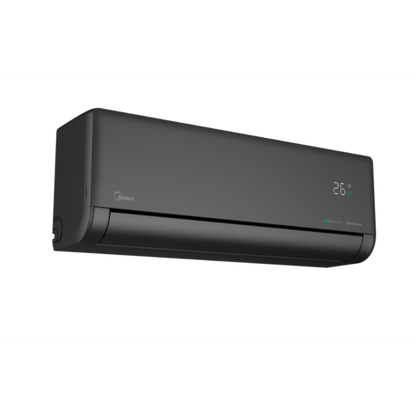

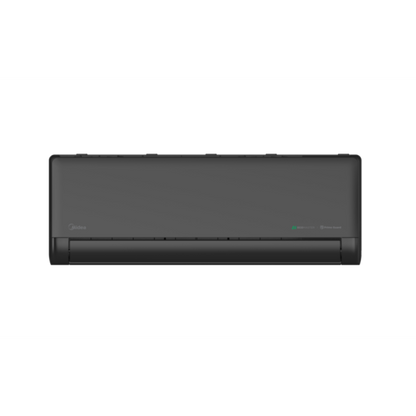

Midea 18K Unicool Inverter Aircon - MSE-18HFN8-B1A

Midea 18K Unicool Inverter Aircon - MSE-18HFN8-B1A

Features
99.9% Sterilization & Dust Removal : Protect your family with cleaner, safer air. The Dual-core ionizer module powers on and releases a massive stream of ions that travel with the airflow to every corner of the room. These ions act like magnets, attracting and neutralizing dust, mold, and harmful bacteria.
Smart Humidity Sensor: Equipped with precision sensors, the AC monitors indoor humidity and allows users to set their desired level.If humidity drops, the system automatically increases fan speed and compressor frequency to balance cooling without over-drying.System will also determine the precise dehumidification requirement and regulates the T2 (evaporator) temperature to maintain the target humidity.
Hyper Grapfins: As a cutting-edge aerospace material, graphene consists of a single layer of carbon atoms in a honeycomb lattice. Its addition to anti-corrosion coatings enhances structural density, creating an impermeable barrier for high-performance aviation applications.
DC Iverter Compressor:A series of hardware technology improvements ensure that the compressor operates more e ciently and economically at low frequencies, enhancing the overall effciency of the unit.
Wide Voltage Protection:Engineered for unstable power grids, our Wide Voltage Operation technology provides uninterrupted comfort when conventional unitsfail. It operates flawlessly in an extreme 150V-264V* range and is shielded by robust surge protection up to 450V. This dual protection ensures you get consistent cooling and guarantees the long-lasting durability.

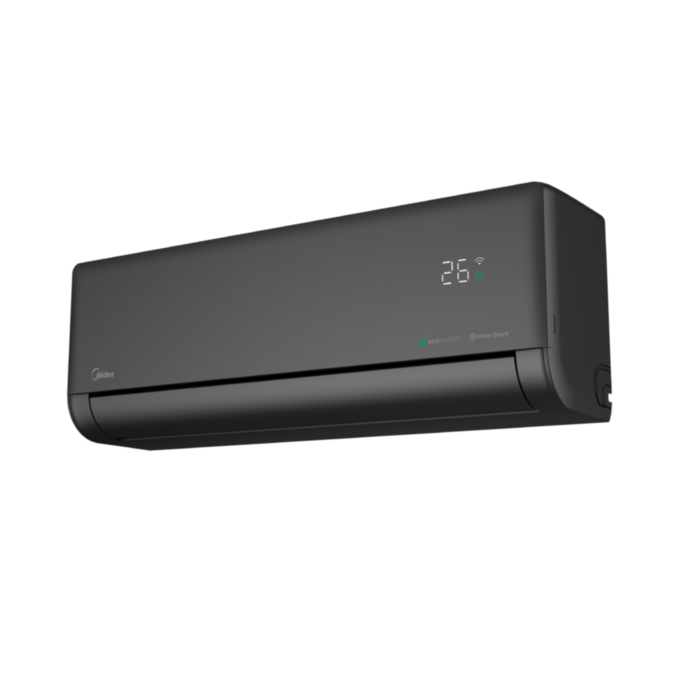

Matt Black Panel: Why should a powerful air conditioner compromise your home's aesthetic? We believe performance and style should coexist beautifully. Introducing our stunning new model in a sophisticated Matte Black finish. Crafted to be the centerpiece of your modern interior.Its deep, non-reflective surface exudes an understated elegance, resisting fingerprints and softening light to create a premium, tactile feel. It blends seamlessly with minimalist designs, dark wood accents, and contemporary decor, transforming a functional necessity into a deliberate piece of wall art.

Technical Specifications

Model  MSGPCU-18HRFN8-QRD1GW
Indoor  MSGPCU-18HRFN8-QRD1GW
Outdoor MOX330-18HFN8-QRD1GW
Power Supply Ph-V-Hz  220-240;50;1

Cooling
Capacity Btu/h 18000
 Capacity Range Btu/h  3,753~10,919
 Input W  1606
 Input Range kW 0.12 ~ 1.35
 Current A  6.77
 Current Range A 0.5 ~ 6.1
 EER W/W 3,28
 Class in Cooling A

Heating
Capacity Btu/h 18500
 Capacity Range Btu/h 4,436~20,814
 Input W 1390
 Input Range kW  0.22 ~ 1.70
 Current A  6.1
 Current Range A  0.9 ~ 7.6
 COP W/W  3.88
 Class in Cooling A
Rated power input W  2800
Rated current A  13.0

Indoor fan motor
Model ZKFP-35-10-188L
 Insulation Class B
 Waterproofing Class uF IP20
 Speed (Hi/Mi /Lo) r/min  1000/868/802

Indoor coil
Number of rows 2
 Tube pitch(a)x row pitch(b) mm 19.5x11.6
 Fin spacing mm 1.3
 Fin type (code) Hydrophilic aluminum
 Tube outside dia. and type mm ø5
 Evaporator Tube outside type  Inner groove tube
 Coil length x height x width mm 530x72x17.3+530x108x17.3+530x108x17.3 620x195x23.2+620x97.5x23.2 770x195x23.2+770x117x23.2 820x214.5x23.2+820x117x23.2
 Number of circuits 2 3 4 6
Indoor air flow (Hi/Mi /Lo) m3/h950/800/600/470/340
Indoor noise level (Hi/Mi /Lo/Si) dB(A)  48/43/36/34/20

Indoor unit
Dimensions (W*D*H) mm 813.00×201.00×289.00
 Packing (W*D*H) mm  1,035×295×385
 Net/Gross weight Kg  10.3/13.3
 Net/Gross weight lb  15.43/20.28

Compressor
Model  KSN140D33UFZB3
 Type  Rotary
 Brand GMCC
 Capacity W  2690/4350
 Input W  434/1127
 Rated current (RLA) A  3.18/6.9
 Refrigerant oil / oil charge ml  ESTER OIL VG74 420±10ml

Outdoor fan motor
Model  ZKFN-34-10-1L-1
 Insulation Class B
 Waterproofing Class IP24
 Speed (Hi/Mid/Lo) r/min 830/700/650

Outdoor coil
Number of rows 2.0
 Tube pitch(a)x row pitch(b) mm  18x17.3
 Fin spacing mm 1.3
 Fin type (code) Hydrophilic aluminum
 Tube outside dia. and type mm ø5
 Tube outside dia. and type mm Inner groove tube
 Coil length x height x width mm  870x504x34.6
 Number of circuits  8
Outdoor air flow m3/h  2.100
Outdoor sound pressure level dB(A)  57.5
Outdoor Throttle Type Capillary

Outdoor unit
Dimensions (W*D*H) mm  805.00×330.00×554.00
 Packing (W*D*H) mm  915x370x615
 Net/Gross weight Kg 29.8/32.3
 Net/Gross weight lb  65.70/71.21

Refrigerant Type R32
 Charge Kg 0.80
 Charge per metre g 12
Design pressure MPa 4.3/1.7

Refrigerant piping
Liquid side mm(inch) 6.35mm(1/4in)
 Gas side mm(inch) 9.52mm(3/8in)
 Max. refrigerant pipe length m 30

m 20
Connection wiring 1.5X5////
Plug type / / 1.5x3no-plug
Thermostat type Infrared RG-10N

Room temperature Indoor (cooling/heating) °C 16~32/0~30
 Outdoor (cooling/heating) °C -15~50/-20~24
Qty per 20’/ 40’/ 40’HQ Set  86/182/208
