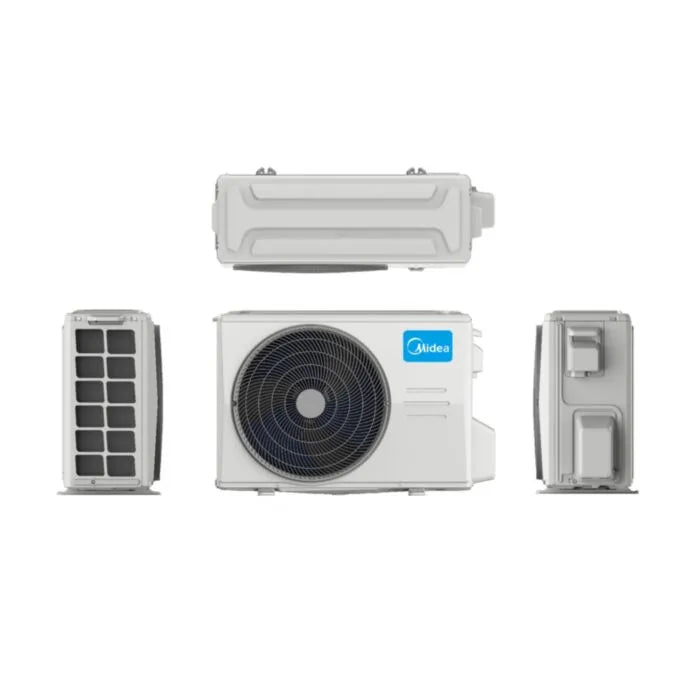

Midea 36000BTU Xtreme Inverter - INVEXT36

Midea 36000BTU Xtreme Inverter - INVEXT36

Specifications
Energy Saving: Just touch the ECO button to activate the mode.Your AC can keep you cool over an 8-hour night period with as low as 1.5 kWh energy consumption,saving of up to 70%.
Ultra Silent: The Midea Xtreme Inverter air conditioner operates at a sound as low as 20dB to ensure your comfort throughout the day and night without any disturbia.
Flash Cooling & Heating: The Inverter Quattro enables the compressor to achieve maximum frequency of 65Hz within 6 seconds,providing you with powerful cooling or heating in an instant.
Wi-Fi Ready: Convient Wi-Fi connectivity allows you to control your environmant at the click of a button for extreme comfort,expedience and ease.

Technical Specifications
Model
INVEXT-36
Indoor
INVEXT-36
Outdoor
INVEXT-36

Power Supply
220V-240V, 1Ph, 50Hz

Cooling
Capacity (W)
35000
Input (W)
3537
Rated Current (A)
15.28
EER (W/W)
2.90

Heating
Capacity (W)
35000
Input (W)
3157
Rated Current (A)
13.73
COP (W/W)
3.25

Max input consumption (W)
5000
Max current (A)
23

Compressor
Model
KTM250D22UMT
Type
Rotary
Brand
GMCC
Capacity (W)
8095
Input (W)
2200
Rated current (RLA) (A)
10
Refrigerant oil / oil charge (ml)
VG74/670

Indoor Fan Motor
Model
ZKFP-58-8-1-10
Input (W)
58
Speed (Hi/Mi/Lo) (r/min)
1200/1020/930

Indoor Coil
a. Number of rows
2
b.Tube pitch (a)x row pitch (b) (mm)
21x13.37
c.Fin spacing (mm)
1.2
d. Fin type (code)
Hydrophilic aluminum
e. Tube outside dia. and type (mm)
7 inner groove tube
f. Coil length x height x width (mm)
925x189x26.74+965x84x26.74+945x147x26.74
g. Number of circuits
5

Indoor air flow (Hi/Mi/Lo) (m3/h)
1603/1302/1153
Indoor noise level (Hi/Mi/Lo) (dB(A))
52/46/42.5

Indoor Unit
Dimensions (W*D*H) (mm)
1259X283X362
Packaging (W*D*H) (mm)
1340x450x385
Net/Gross weight (Kg)
17.9/23.4

Outdoor fan motor
Model (mm)
ZKFN-120-8-2
Input (W)
150
Speed (r/min)
880/700/500

Outdoor coil
a.Number of rows
2.6
b.Tube pitch(a) x row pitch(b) (mm)
21x13.37
c.Fin spacing (mm)
1.4
d. Fin type (code)
Hydrophilic aluminum
e. Tube outside dia. and type (mm)
7 inner groove tube
f.Coil length x height x width (mm)
1005x756x26.74+598x756x13.37
g.Number of circuits
6

Outdoor air flow (m3/h)
3800
Outdoor noise level dB(A)
61

Outdoor Unit
Dimensions (W*D*H) mm
946x410x810
Packing (W*D*H) mm
1090x500x885
Net/Gross weight Kg
61.5/66

Refrigerant type Kg
R410A/2.25
Design pressure MPa
4.2/1.5

Refrigerant piping
Liquid side/Gas side mm(inch)
9.52mm(3/8in)15.9mm(5/8in)
Dimensions (W*D*H) mm
50
Packing (W*D*H) mm
25

Connection wiring
1.5X4//
Plug Type
//no plug
Thermostat type
Remote control
Operation temperature
17-30

Room temoerature
Indoor (cooling/heating)
16-32/0-30
Outdoor (cooling/heating)
-15-50/-15-24

Application area (Cooling Standard)
43-63
Qty per 20'/40'40'HQ
36/76/88
