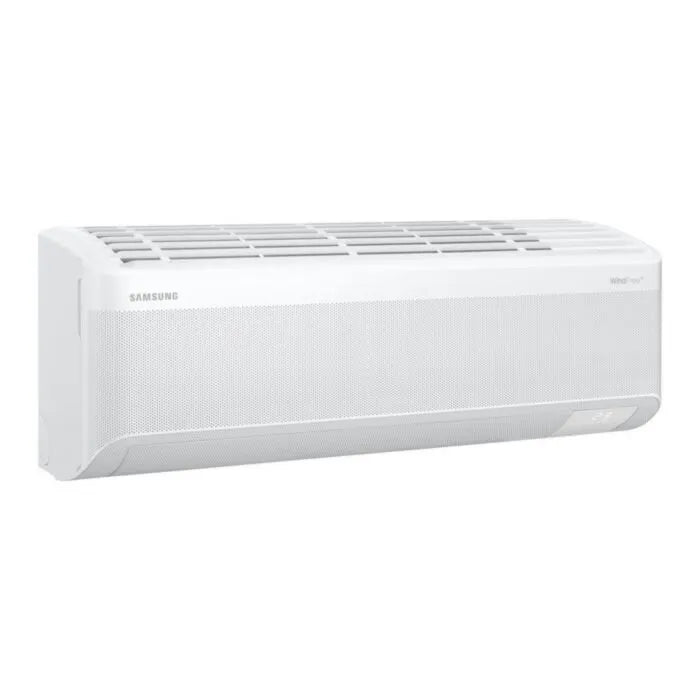

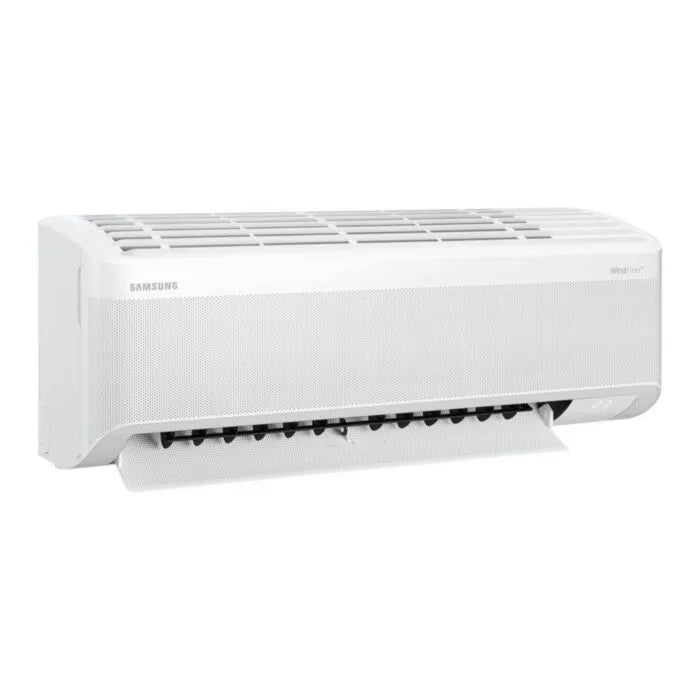

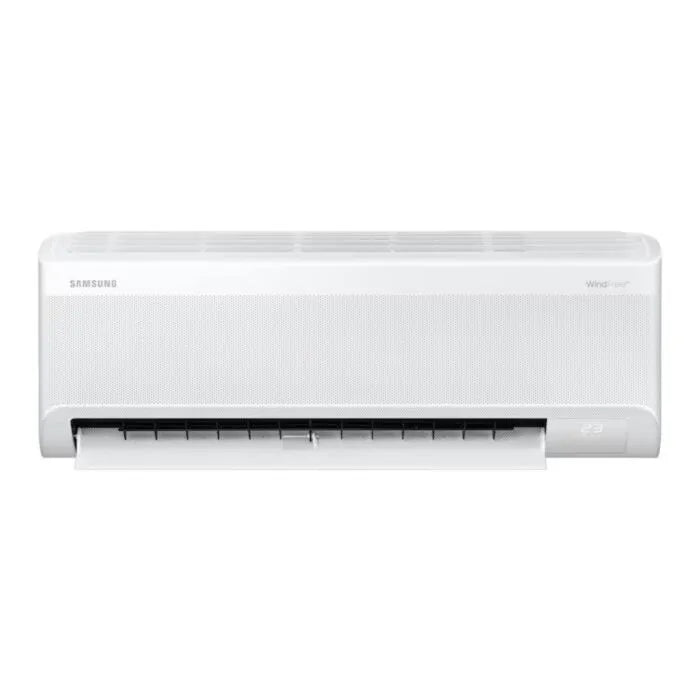

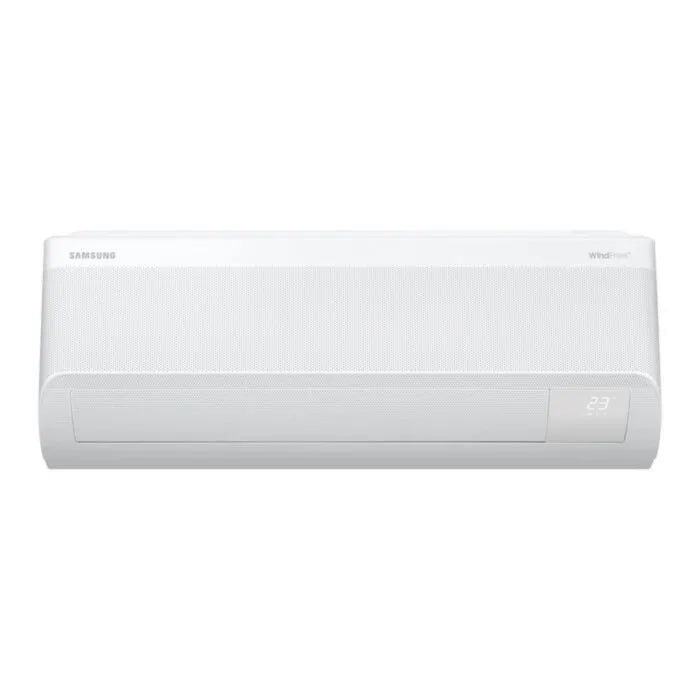

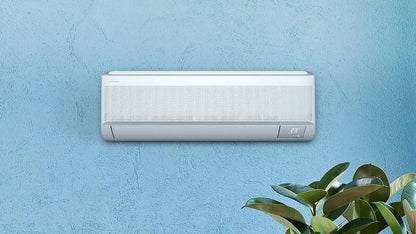

Samsung 9000BTU Wall-Mount AC With Wind-Free™ - AR70F09C1FW/FA

Samsung 9000BTU Wall-Mount AC With Wind-Free™ - AR70F09C1FW/FA

•AI Fast & Comfort Cooling

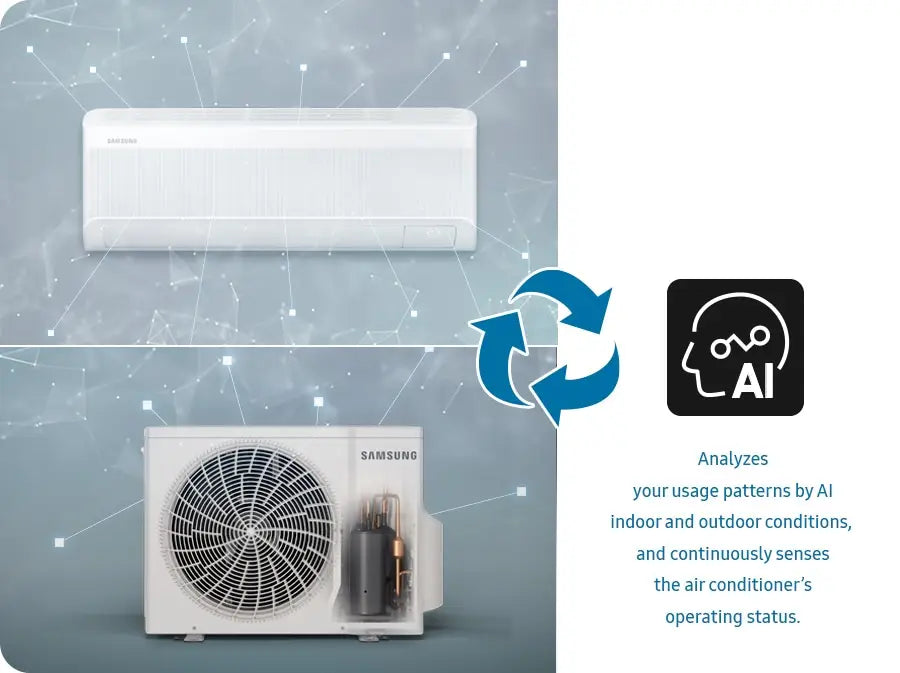

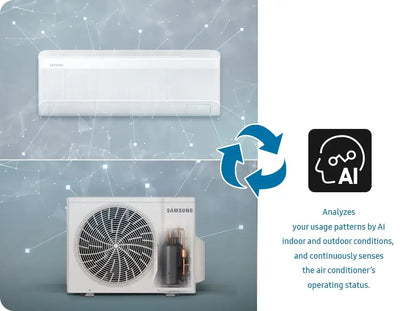

•AI Energy Mode
•Comfort Drying

Specifications
Capacity (Cooling, Btu/hr)8530
 Capacity (Cooling, kW)2.50
 EER (Cooling, W/W)3.25
 Net Dimension (Outdoor, WxHxD, mm)710 x 540 x 220

Specifications Detail
Capacity
Capacity (Cooling, Btu/hr)8530
 Capacity (Heating, Btu/hr)10919
 Capacity (Cooling, Min - Max, Btu/hr)3071 - 11431
 Capacity (Heating, Min - Max, Btu/hr)2730 - 15355
 Capacity (Cooling, kW)2.50
 Capacity (Heating, kW)3.20
 Capacity (Cooling, Min - Max, kW)0.9 - 3.35
 Capacity (Heating, Min - Max, kW)0.8 - 4.5

Energy Efficiency
EER (Cooling, W/W)3.25
 COP (Heating, W/W)3.76
 EER (Cooling, Btu/hW)11.08
 COP (Heating, Btu/hW)12.85
 Energy Efficiency Class for cooling (Grade)C : A, H : A++

Noise Level
Noise Level (Indoor, High/Low, dBA)38/21
 Noise Level (Outdoor, High/Low, dBA)45

Electrical Data
Power Source(Φ/V/Hz)1 / 220~240~ / 50
 Power Consumption(Cooling, W)770
 Power Consumption(Heating, W)850
 Operating Current(Cooling, A)3.4
 Operating Current(Heating, A)3.8

Physical specification
Gross Dimension (Indoor, WxHxD, mm)880 x 290 x 375
 Gross Dimension (Outdoor, WxHxD, mm)834 x 620 x 323
 Net Dimension (Indoor, WxHxD, mm)820 x 299 x 215
 Net Dimension (Outdoor, WxHxD, mm)710 x 540 x 220
 Gross Weight (Indoor, kg)10.1
 Gross Weight (Outdoor, kg)24.5
 Net Weight (Indoor, kg)8.7
 Net Weight (Outdoor, kg)22.5
 Loading Quantity (20/40/40Hft without Pipe)105 / 212 / 252

Technical Information
Piping Length (Max, m)15
 Piping Height (Max, m)8
 SVC Valve (Liquid (ODxL))6.35
 SVC Valve (Gas (ODxL))9.52
 Moisture Removal (l/hr)0.93
 Air Circulation (Cooling, ㎥/min)9.80
 Refrigerant (Type)R32
 Refrigerant (Charging, kg)0.53
 Refrigerant (Charging, tCO2e)0.36
 Low Ambient (Cooling, ℃)-10~46
 Low Ambient (Heating, ℃)-15~24
 Outdoor Unit (Compressor Type)BLDC
 Outdoor Unit (Anti-Corrosion Fin)Yes+

Air Flow
WindFree CoolingYes
 Air Direction Control (Up/Down)Auto
 Air Direction Control (Left/Right)Auto
 Air Flow Control Step (Cool/Fan)5/4

Air Purification

PM 1.0 FilterNo
 4-in-1 Care FilterYes
 Copper Anti-bacterial FilterYes
 Auto Clean (Self Cleaning)Yes
